GLOBAL FLEET OF WINCHES FROM 7.5Te - 350Te WLL

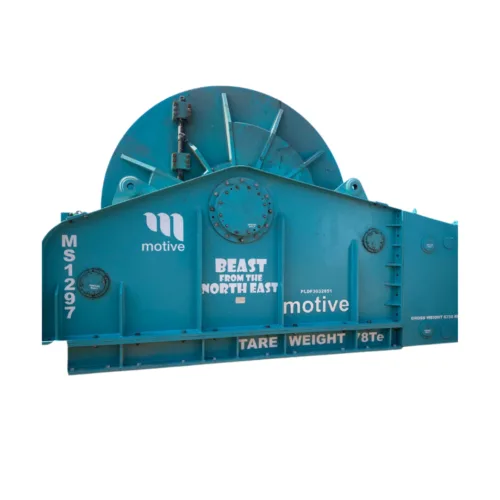

Motive Drum Winches are used across multiple sectors, for lifting, mooring, anchoring, pull-ins, and A&R. Choose from a range of standardised winches, or we can custom-build to suit specific project requirements. All Motive winches have constant tension functionality and can be derated to meet specific project requirements.

High-capacity winches are available up to 350Te WLL and can be supplied fitted with extras such as Active Heave Compensation, or Smart Winch Technology to gather valuable data analytics such as drum rotations, layer and wrap counts, and wire remaining on the reel.

Enabling multiple winches to be operated in synchronisation, Winch Control Systems provide monitoring and recording functions via a single PLC (Programmable Logic Controller), accessible remotely for data collection or troubleshooting.

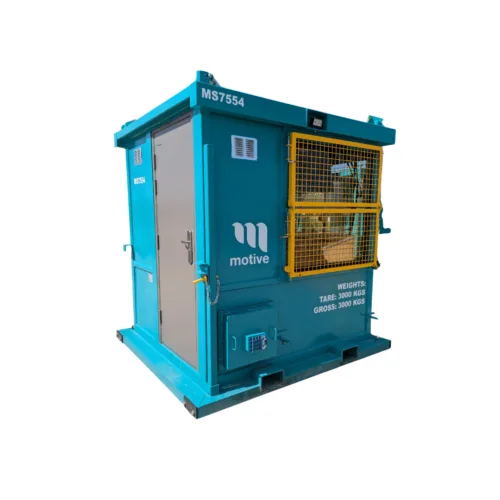

Our custom-built DNV rated Control Cabins are fitted with a control panel, large remote screen and CCTV, with air conditioning/heating and wide-angle windows on all sides, for the enhanced safety and comfort of Operators.

Active Heave Compensation (AHC) Winch Packages are available from Motive bases across the UK, and in Stavanger, Norway, for deployment on a global basis.

Motive can supply Active Heave Compensation with any equipment designed to lift and deploy loads subsea, covering applications such as cable lay, retrieval and maintenance, oil and gas or decommissioning operations deploying and retrieving subsea equipment, or the installation of pipelines and other subsea structures.

An AHC Lifting System counteracts the vertical motion of a vessel caused by waves and sea swell. For example, by dynamically adjusting a winch drum’s position it can maintain a steady load position in rougher sea conditions allowing precise handling of subsea equipment.

Utilising Scantrol’s proven technology, Motive installs and tests the software using Dynatest with simulated vessel motion and speed test functionality. This ensures minimal set-up once equipment reaches the back deck, with no need for live testing in rough conditions. All systems come complete with remote support functionality for added confidence.

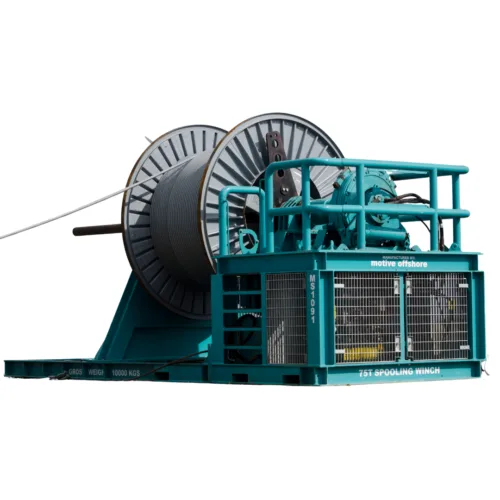

Range of back-tension Spooling Winches from 6Te - 350Te WLL

Motive Spooling Winches come with interchangeable shafts and adjustable pedestals to suit various reel sizes. Unlike a drum winch, the rating of a spooling winch is based on its payload capacity.

All spooling winches can be provided with constant tension functions and are fully tested in-house prior to delivery.

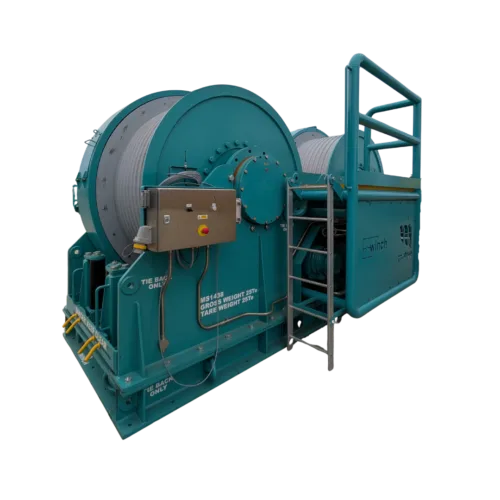

15Te and 50Te WLL Hydraulic Traction Winch options, ideal for spooling, tensioning, or holdback applications requiring a controlled pull on heavy loads.

Perfect for substantial wire installations, the traction winch delivers bi-directional constant tension and comes complete with a fitted adjustable guide, control station, and HPU Package.

Motive specialises in the custom design and manufacture of Hydraulic Power Units / Power Packs for a range of environments, all supplied fully tested and certified.

Designed to provide power to hydraulic driven machinery, Motive Hydraulic Power Units are available in both electric and diesel models, with options suitable for safe area and zone 2 applications.

HPUs range from 18kW to 1360kW, with ATEX and NORSOK-compliant HPU’s from 18kW to 150kW.

Electric Hydraulic Power Units (HPUs)

• 18.5kW Electric HPU

• 32.5kW Electric HPU

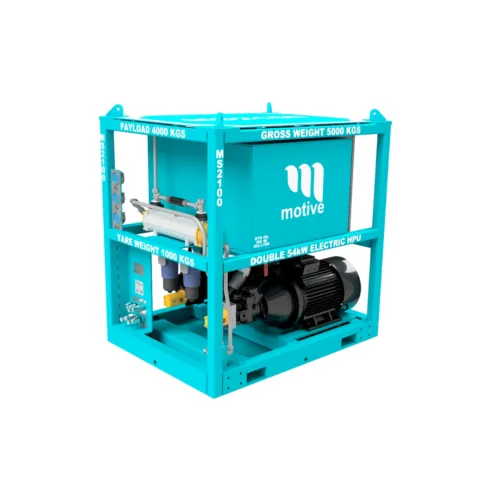

• 54kW Electric HPU / 54kW Twin Electric HPU
• 55kW Electric HPU
• 84kW Electric HPU
• 150kW Zone II Electric HPU
• 480kW Electric HPU

Diesel Hydraulic Power Units (HPUs)

• 63kW Diesel Safe Area HPU
• 63kW Diesel Zone II HPU
• 99kW Diesel Safe Area HPU
• 120kW Diesel Safe Area HPU
• 350kW Diesel Safe Area HPU
• 1360kW Diesel Safe Area HPU

All Motive HPUs are available for rental or purchase with a design-build service available to meet any custom requirements.

Choose from an adaptable range of routing solutions for secure and accurate flexible pipe, cable or umbilical transfer.

Products in the Motive range include overboarding chutes, A-frames, tagging towers, and roller boxes for wire rope/flexible routing and diverting.

Fabrication of bespoke chutes and other solutions available on request.

Up to 20Te rated capacity, these robust towers have been designed for harsh environments. Providing safe and efficient cable management, perfect for energy, telecoms and offshore construction work scopes.

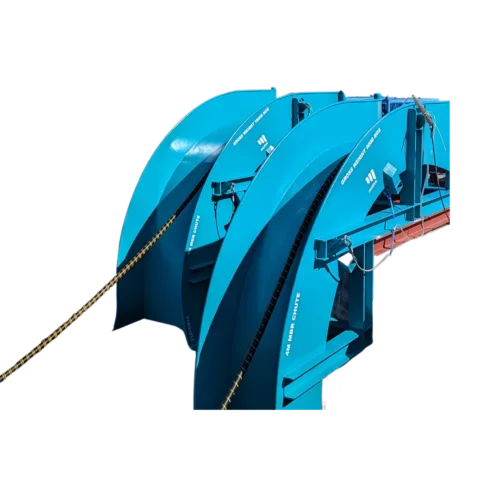

Roller and solid bed chutes ranging from 0.63m-4m. Flares are fitted on chute entry/exit to protect the product and ensure smooth transition.

Minimum Bend Radius (MBR) range (solid bed chute): 1.73m to 4m
Minimum Bend Radius (MBR) range (roller chute): 0.63m to 2.8m

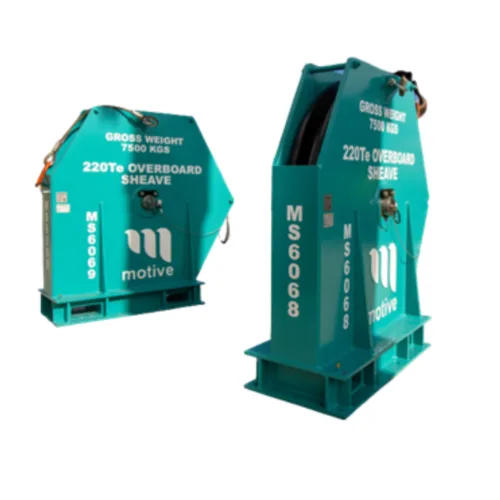

Large selection of overboarding sheaves, up to 240Te WLL, for facilitating the safe and efficient handling of ropes, cables or wires over the side of a vessel or structure during deployment, installation and mooring operations.

Various models including roller boxes, v rollers, aerial roller boxes and cable skates, available for the controlled handling and guidance of flexible pipe, cable and umbilical.

Roller boxes can be positioned on grillages and suspended on a forklift to raise product height, or change the direction of the product. They can also be secured together and used as a cable highway.

Specially engineered Cable Highways are available, comprising an adjustable roller box assembly to ensure precise cable movement along its intended route, while minimising the risk of any product damage.

Range of Swivelhead, Double-sheave, Multi-Angle and Roller Fairleads available, up to 220Te WLL.

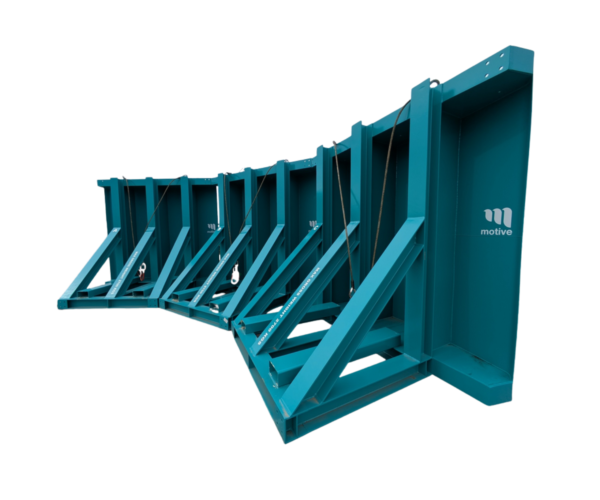

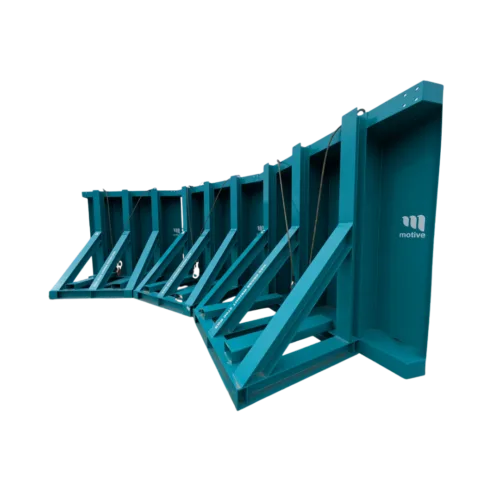

Various Deck Deflectors available to suit deck space and line pull requirements.

Robust, customisable storage options for marine, subsea and offshore cables.

Engineered solutions for safe transport and easy handling, to streamline installation and maintenance operations.

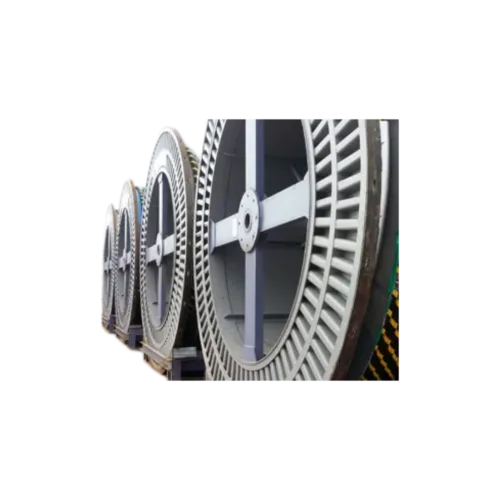

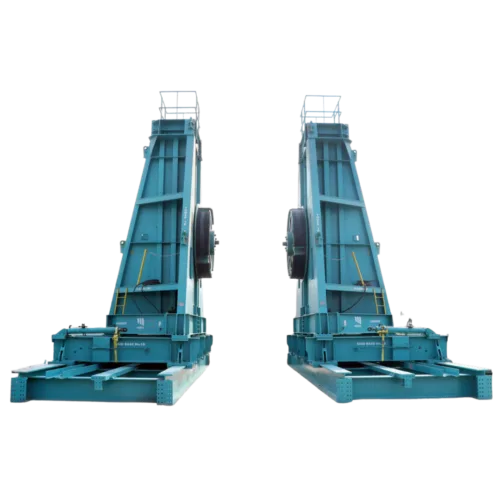

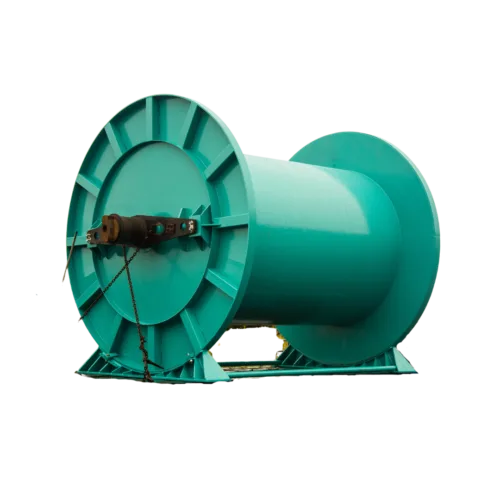

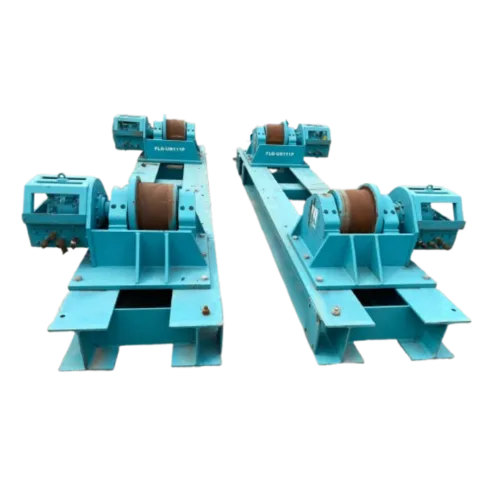

Storage and installation Reels including modular options always in stock for short or long-term hire, ranging from 6m to 9.2m diameter. All reels can be driven through a hub, utilising our fleet of reel drive systems, or used with under-roller systems.

Supplied with transportation cradles for ease of handling and can be fitted with suitable partitions or product handling structures to suit project requirements.

A full in-house design-build service is available for largescale custom reels, including custom reel lifting/carrier arrangements and Personnel for commissioning and installation.

Comprehensive line of Umbilical Reelers with integrated power packs available for holding hoses or flexible products.

Reelers can be modified to meet project-specific requirements, for example to include multicore rotary couplings and electric slip rings, and to meet the required radius specifications.

Various Reel Stands available to suit all sizes of wire or umbilical reels.

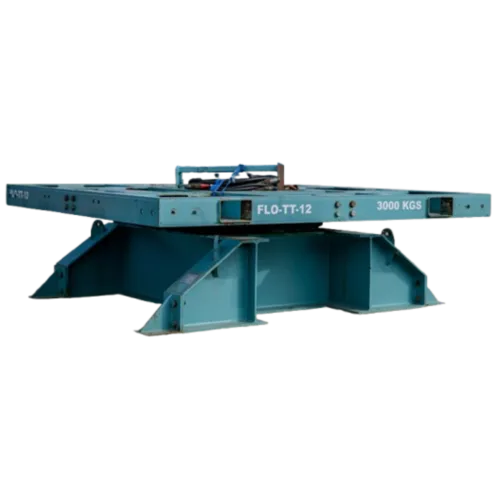

A range of Turntables up to 60Te capacity and Pallets ranging from 2.8m to 8m outer diameter offer a cost-effective offshore/onshore solution for controlled rotation for loading, transpooling, and deployment of flexible product.

Suitable for use topside, vessel, subsea and quayside and modular 4-piece pallets are available for in-gauge cargo transportation.

Pallet sizes available include 2.8m, 5.8m, 8.0m and 9.8m

Turntables are available up to 60Te capacity. Turntable and Pallet items can be rented individually, or as a complete package. Supplied with certified lifting, rigging, brackets, control stand, and a suitably rated HPU.

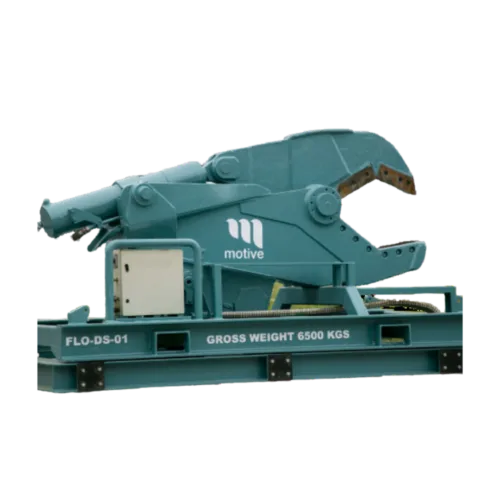

Skid-mounted Hydraulic Shearswith retractable jaws for heavy-duty demolition/product recycling. Available in 800-1250Te shear force and can be supplied with Motive Linear Cable Engine or Tensioner.

A hydraulically-powered base retracts the shear jaws after each cutting operation. Mounted on skids, the pipe or cable is fed through the unit, normally using a tensioner. The scissor action shear is hydraulically powered by a remote-control valve which can be located in a tensioner control cabin.

Choose from a detailed testing, inspection and maintenance equipment inventory including LMA Wire Rope Testing machines, Viper Wire Rope Lubrication and Load Testing equipment.

Access a range of solutions delivering cost-effective critical product testing and proactive risk management.

Quantitatively analyse wire, detect localised flaws and measure the loss of metallic cross-sectional area (LMA) caused by deterioration, or wear and tear.

• LMA-250 Wire Rope Inspection System
• LMA-300 Wire Rope Inspection System
• LMA-450 Wire Rope Inspection System
• LMA-650 Wire Rope Inspection System

Safe and rapid lubrication of wire ropes up to 165mm. Recommended for use with ROV Cables, Vessel Crane Ropes, Underwater Offshore Wire Ropes and Drag Lines.

• Viper WRL MID MKII Wire Rope Lubricator
• Viper Maxi MKII Pressure Lubricator

Masto Greasing System also available.

Range of heavy-duty water load test bags available for load testing, from 5Te – 110Te

Our 120Te Test Frame assesses tensioner squeeze capacity, line tension, product squeeze capacity, and product deformation of tensioners and flexible products.

Onsite Winch Test Bed facilities up to 250Te WLL available for load and destruction testing.

• Oil analysis
• Particle Counters
• Remote Control Stations c/w protective cages
• Running Line Monitors including for Zone II use
• Pressure Testing

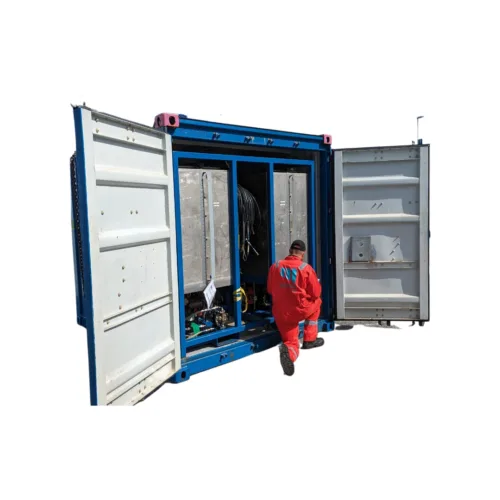

A unique integrated testing container designed by Motive enables the testing of fibre, electric, and hydraulic cables via one location.

Providing continuous monitoring during load out, lay, hook up and post-hook up, the compact umbilical testing container saves space, keeping the back-deck and platform free of pumps and testing kit. The “plug and play” system creates a safer working environment, whilst also facilitating quicker mobilisation and demobilisation.

Discover more: Five-Phase Umbilical Testing case study

The Motive Subsea Basket range is one of the most comprehensive available in the industry - from small tooling baskets and seabed debris recovery baskets, to large pipeline recovery baskets capable of retrieving up to 23 tonne payload.

Designed to allow the transport of tools and equipment to decommissioning jobs, our baskets are built to withstand harsh subsea environments, fully fabricated and tested in-house.

Motive Subsea Winches up to 30Te WLL can be completely powered and controlled by a work class ROV via hot stab or can be powered from a deck HPU for shallow water applications.

Subsea winches can be provided with constant tension function and are fully tested in-house prior to delivery. All supplied fitted inside a crash frame with integral steel clump weights.

Multi-Purpose Clump Weights and Anchors from 2Te to 25Te available for rental. Supplied fully certified and with rigging if required.

• Fully steel encased
• Forklift pockets through the entire base
• 2-point lifting
• Stackable for storage
• 2Te – 25Te capacity

• Air Blast Coolers
• Centrifugal, Diaphragm, Submersible and Piston Pumps

Full range of pump types suitable for different environments and applications.

• Filtration Systems
• Flowmeters
• Flushing Skids
• Hydraulic high-pressure pumps

We offer 3 versions of the Dynaset high pressure pump: Standard pumps, Subsea pumps modified for use subsea and mounting on ROVs, and Drilling pumps with extra coating of pistons and valves making it possible to increase the pumping of particles by 25%.

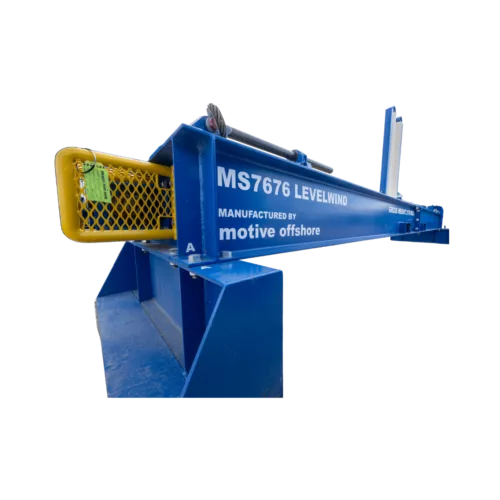

Ensuring wire wraps tightly and evenly on all layers, and controlling the fleeting angle during operations, Motive manufactures a range of adjustable Levelwinds, for its rental fleet and for client purchase.
